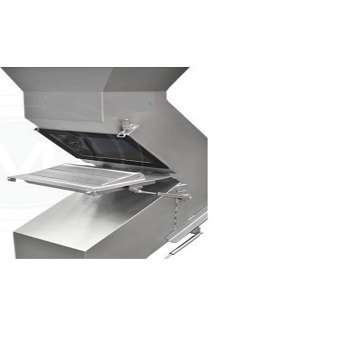

NEODYMIUM IRON PLATE SEPERATOR

Plate magnets attract the iron particle from a large distance. But the general rule is that the closer the magnetic plate is to the product, the more effective the iron separation is. Goudsmit builds all magnetic plates that are mounted above product lines with ‘flux control’ to create a deeper holding field. These include extra magnets between the poles that cause the lines of flux to penetrate deeper into the product flow. Magnetic plates for applications in which the product flows over the magnet (type B) are designed with the strongest possible magnetic field at the poles, rather than deeply penetrating lines of flux. A ridge prevents captured iron particles from being carried away again by the product stream. Magnet quality GSN35 (Br 9000 gauss) Capture Fe particles from 70 µm Manual cleaning Max. temp. 80 °C Completely stainless steel and watertight Max. holding field 700 mm

Availability: In Stock

Qty:

Categories:

A plate magnet has a deeply penetrating field, that is: it attracts an iron particle from a great distance. The strength of the attractive force is not dependent on the weight but rather the shape of the iron particle. Most easily captured is a flat plate, then a rod shape and, lastly, a cube. A sphere is the most difficult to capture. The specific field strength required to capture a particular shape can be expressed as the ‘specific force index’. Because we know the force index of a particular magnet, we can predict whether or not a particle will be captured. Goudsmit uses a finite elements computer application to calculate this.
